SCY Design

Defence & Paramilitary Boats

right click mouse on picture, "save target as" to download to hard drive
Type Planing Hull, SRB
LOA 7.7m
Lmoulded 6.8m
Beam 2.4m
Installed Power 292hp Outboard
  Waterjet

Animation


Comments:


right click mouse on picture, "save target as" to download to hard drive

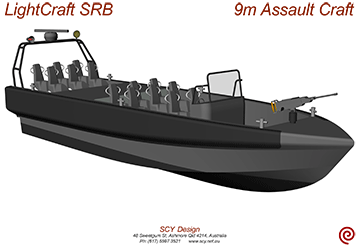

Type Planing Hull, SRB option
LOA 9.1m
Lmoulded 8.0m
Beam 2.7m
Installed Power up to 500hp Outboard
  Diesel / Waterjet Option
Complement 2 + 8


Comments: Alternative to conventional RIB

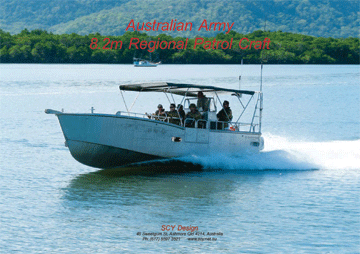

right click mouse on picture, "save target as" to download to hard drive
Type Planing Hull
LOA 9.4m
Lmoulded 8.2m
Beam 2.8m
Installed Power 350hp Diesel / Waterjet


Comments:  16 Boats built for Australian Army.











right click mouse on picture, "save target as" to download to hard drive

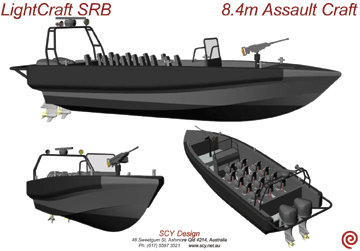

Type Planing Hull, SRB
LOA 9.5m
Lmoulded 8.4m
Beam 2.9m
Installed Power 2 x 300hp Outboard

Complement 2 + 12

Animation


Comments:  Alternative to conventional RIB

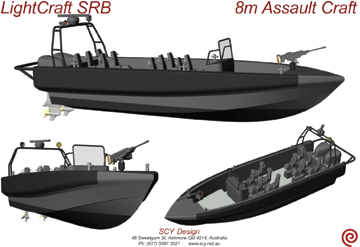

right click mouse on picture, "save target as" to download to hard drive
Type Planing Hull, SRB
LOA 9.9m
Lmoulded 8.0m
Beam 2.7m
Installed Power 2 x 323kW, Waterjet

Complement 2 + 12




Comments:  Alternative to conventional RIB

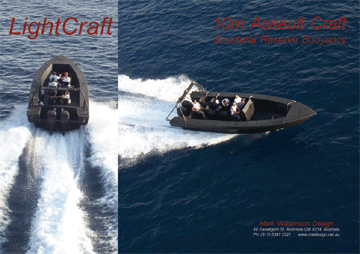

right click mouse on picture, "save target as" to download to hard drive
Type Planing Hull, SRB
LOA 10.6m
Lmoulded 9.6m
Beam 3.36m
Installed Power up to 600hp Outboard
Complement 2 + 6


Comments:  Jordan Special Forces

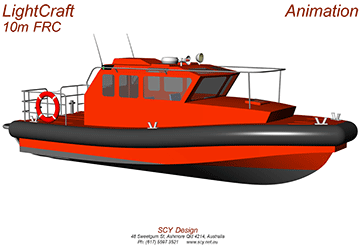

right click mouse on picture, "save target as" to download to hard drive
Type Planing Hull, Fast Rescue Craft
LOA 10.3m
Lmoulded 9.3m
Beam 3.4m
Installed Power 300hp
Pax 12 NSCV 2C

Animation

Comments:

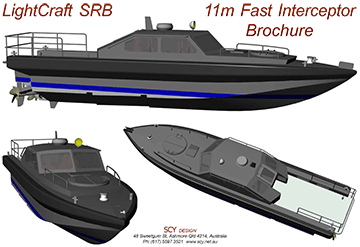

right click mouse on picture, "save target as" to download to hard drive

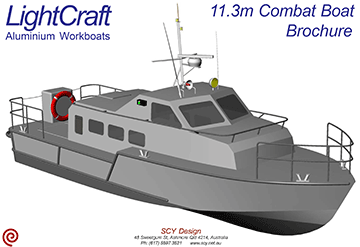

Type Planing Hull, SRB
LOA 11.3m
Lmoulded 10.1m
Beam 2.7m
Installed Power 2 x 412kW
  Waterjet
Animation


Comments:  Fast Interceptor

right click mouse on picture, "save target as" to download to hard drive
Type Planing Hull - Stepped, SRB
LOA 11.3m
Lmoulded 10.1m
Beam 2.7m
Installed Power 2 x 412kW
  Surface Piercing Props
Animation


Comments:  Fast Interceptor, 60knots +, Stern Thruster

right click mouse on picture, "save target as" to download to hard drive

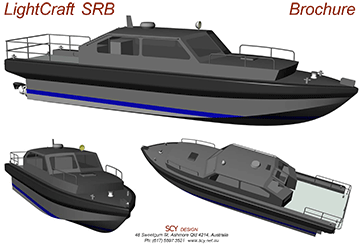

Type Planing Hull, SRB
LOA 12.3m
Lmoulded 11.1m
Beam 3.3m
Installed Power 3x300hp, 2x300-500hp
Propulsion WJ
Complement 2 + 10 NSCV 2C

Animation


Comments: Day Boat

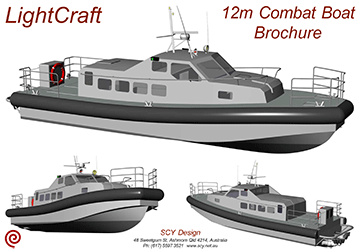

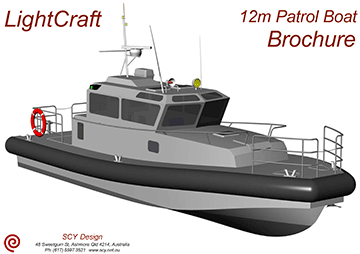

right click mouse on picture, "save target as" to download to hard drive
Type Planing Hull
LOA 12.2m
Lmoulded 11.3m
Beam 3.4m
Installed Power 2 x 300-500hp
Propulsion WJ, prop option
Complement 2 + 10 NSCV 2C

Animation


Comments:



right click mouse on picture, "save target as" to download to hard drive
Type Planing Hull
LOA 12.2m
Lmoulded 11.3m
Beam 3.4m
Installed Power 2 x 250-350hp Outboards
Complement 2 + 12 NSCV 2C

Animation


Comments: Multi-Purpose platform

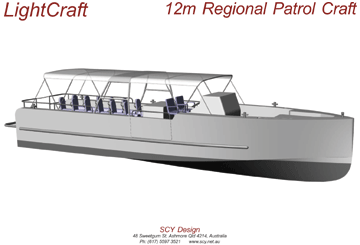

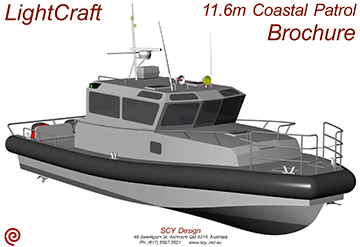

right click mouse on picture, "save target as" to download to hard drive
Type Slender Displacement Hull
LOA 12.7m
Lmoulded 11.8m
Beam 3.2m
Installed Power 1 x 380, 2 x260hp
Propulsion WJ, prop option
Complement 2 + 12 NSCV 2C


Comments: Regional Patrol Craft



right click mouse on picture, "save target as" to download to hard drive
Type Planing Hull, Rib
LOA 13.3m
Lmoulded 11.9m
Beam 3.6m
Installed Power 2 x 300-500hp
Propulsion WJ, prop option
Complement 2 + 12 NSCV 2C

Animation


Comments: Multi-Purpose platform, Covertable Berths



right click mouse on picture, "save target as" to download to hard drive
Type Planing Hull, Rib
LOA 13.3m
Lmoulded 11.9m
Beam 3.6m
Installed Power 2 x 300-500hp
Propulsion WJ, prop option
Complement 2 + 12 NSCV 2C

Animation


Comments: Day Boat

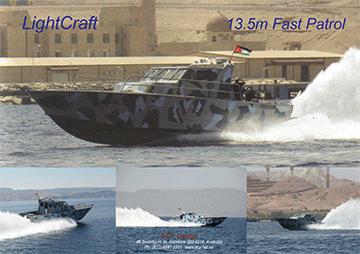

right click mouse on picture, "save target as" to download to hard drive
Type Planing Hull
LOA 14.8m
Lmoulded 13.5m
Beam 4.2m
Installed Power 2 x 700hp
Propulsion Surface Piercing Props
Speed 47knots, 2.5t dwt
Complement 2 + 12 NSCV 2C


Comments: Jordanian Kings Guard, Launch 2006

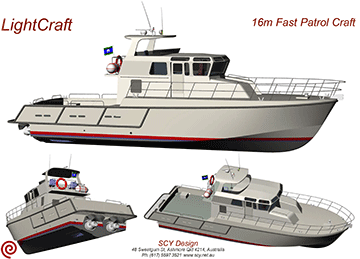

right click mouse on picture, "save target as" to download to hard drive
Type Planing Hull, RIB
LOA 15.7m
Lmoulded 14.0m
Beam 4.35m
Installed Power 2 x 300-600kW
Propulsion Waterjet
Speed
Complement 4 + 12 NSCV 2C
  2 + 20



right click mouse on picture, "save target as" to download to hard drive
Type Planing Hull
LOA 17.5m
Lmoulded 16.2m
Beam 4.6m
Installed Power 2 x 700-1000kW
Propulsion Waterjet
Speed
Complement 6 + 12 NSCV 2C








right click mouse on picture, "save target as" to download to hard drive

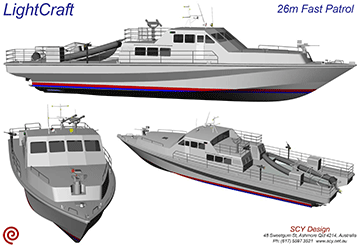

Type Planing Hull, SRB
LOA 26.2m
Lmoulded 24.2m
Beam 6.5m
Installed Power 2100-4300kW
Propulsion Waterjet
Speed
Complement 3 + 8 crew
  17 day


right click mouse on picture, "save target as" to download to hard drive

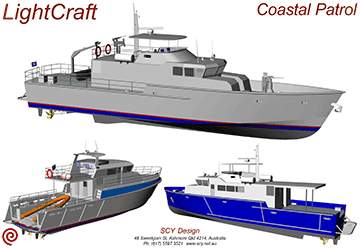

Type Coastal Patrol 17-30m



right click mouse on picture, "save target as" to download to hard drive

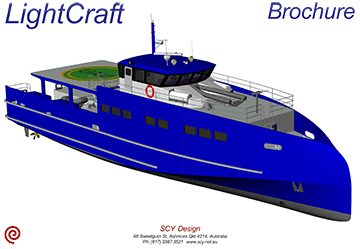

Type GM
LOA 33.2m
Lmoulded 33.0m
Beam 7.2m
Installed Power 3 x 809kW
Propulsion Props
Speed 28.9kn @ 25t dwt
  25.5kn @ 50t dwt
Range 7300nm at 12knots

Complement 3 officer +18 crew


Animation

right click mouse on picture, "save target as" to download to hard drive

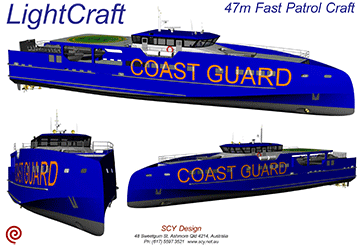

Type GM
LOA 47.0m
Lmoulded 46.8m
Beam 9.0m
Installed Power 2 x 2240kW
Propulsion Props
Speed 31.7kn @50t dwt
  28.6kn @ 100t dwt
Range 10000nm+ at 12knots

Complement 9 officer + 34 crew


Animation
