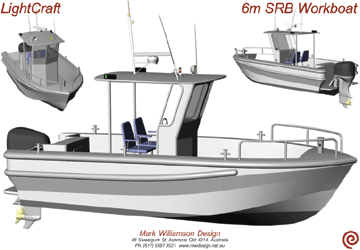

| Type |
Planing Hull, SRB |
| LOA |
6.3m |
| Lmoulded |
6.0m |
| Beam |
2.4m |
| Installed Power |
100-200hp Outboard |
| |
|
| |
|
Comments: Similar boat working on Sydney Harbour by
Seatow for since 2006
|
|
|
|
 |

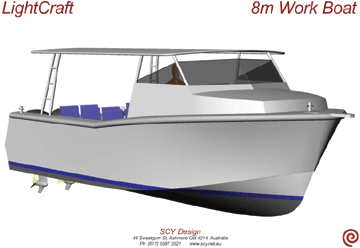

| Type |
Planing Hull, SRB option |
| LOA |
9.0m |
| Lmoulded |
8.0m |
| Beam |
3.0m |
| Installed Power |
up to 500hp Outboard |
| |
Diesel / Waterjet Option |
| |
|
Comments: Available in various
configurations, centre console, walk around cabin.
|
|
|
|
 |
| Type |
Planing Hull |
| LOA |
9.4m |
| Lmoulded |
8.2m |
| Beam |
2.8m |
| Installed Power |
350hp Diesel / Waterjet |
| |
|
Comments: 16 Boats built for
Australian Army.
|
|
|
|
 |

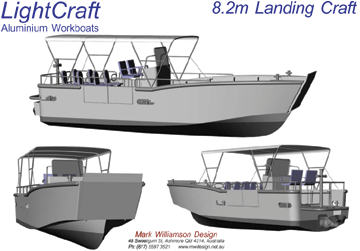

| Type |
Planing Hull, Landing Craft |
| LOA |
9.4m |
| Lmoulded |
8.2m |
| Beam |
2.8m |
| Installed Power |
350hp Diesel / Waterjet |
| |
|
Comments:
|
| |
|
 |
| Type |
Planing Hull, Landing Craft |
| LOA |
9.5m |
| Lmoulded |
8.5m |
| Beam |
2.9m |
| Installed Power |
200-500hp Outboard |
| |
|
Comments: Built by Marine Solutions, Fiji |
| |
|
 |
| Type |
Semi-Planing Hull |
| LOA |
10.8m |
| Lmoulded |
10.0m |
| Beam |
3.25m |
| Installed Power |
2 x 250hp |
| |
|
Comments: |
|
|
|
 |

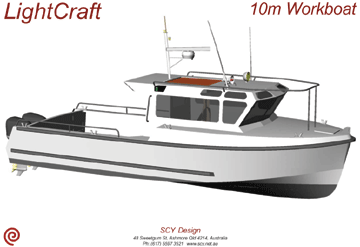

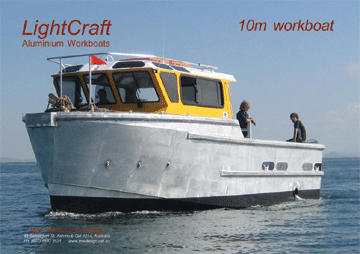

| Type |
Semi-Planing Hull |
| LOA |
10.0m |
| Lmoulded |
9.9m |
| Beam |
3.5m |
| Installed Power |
375hp, 28" prop with tunnel |
| |
|
Comments: Line Boat operating on Brisbane
river. |
| |
|
 |
| Type |
Slender Displacement Hull |
| LOA |
10.8m |
| Lmoulded |
9.9m |
| Beam |
3.2m |
| Installed Power |
380hp, 550mm prop with tunnel |
| Pax |
12 NSCV 2C |
| |
18 NSCV 1D |
| |
|
Comments: |
|
|
|
 |
| Type |
Semi-Planing Hull |
| LOA |
12.0m |
| Lmoulded |
11.9m |
| Beam |
4.0m |
| Installed Power |
2 x 315hp, 26" props |
| |
|
Comments: Pilot / Workboat |
|
|
|
 |

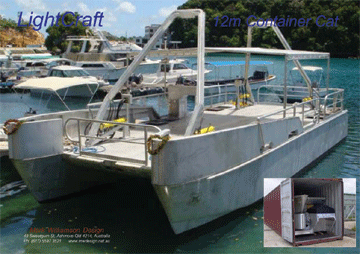

| Type |
Catamaran |
| LOA |
12.4m |
| Lmoulded |
11.8m |
| Beam |
4.4m |
| Installed Power |
2 x 225hp Outboards |
| |
|
Comments: Container Cat, splits along CL
Diesel / Waterjet option.
Operating in Palau.
|
|
|
|
 |

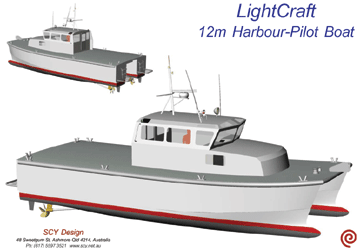

| Type |
Semi-Swath Catamaran |
| LOA |
12.0m |
| Lop |
11.8m |
| Beam |
4.4m |
| Installed Power |
2 x 200-350hp |
| |
|
Comments: General Harbour Workboat / Pilot
Boat Workboat. Aluminium / Composite Construction option.
|
| |
|
 |

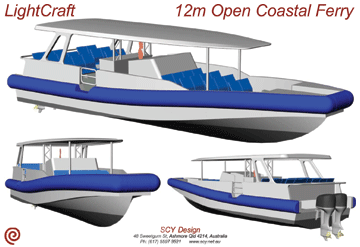

| Type |
Planing Hull, RIB |
| LOA |
12.4m |
| Lmoulded |
12.0m |
| Beam |
3.95m |
| Installed Power |
600-900hp |
| Pax |
28 |
| |
|
| Animation |
|
| |
|
Comments: Open Coastal Ferry, Diesel options |
|
|
|
 |

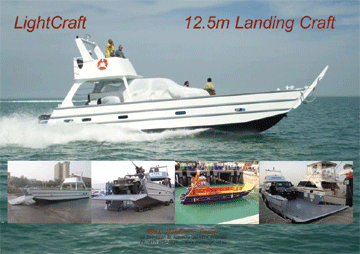

| Type |
Planing Hull, Landing Craft |
| LOA |
13.5m |
| Lmoulded |
12.5m |
| Beam |
3.7m |
| Installed Power |
2 x 225hp Outboards |
| |
3 engine option |
| |
|
Comments: Multiple boats operating in the
Middle-East
Designed to take military spec Hummer.
|
|
|
|
 |

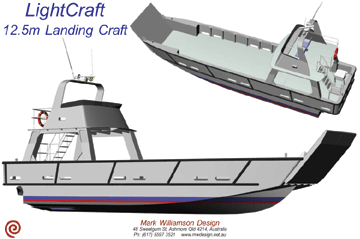

| Type |
Planing Hull, Landing Craft |
| LOA |
13.7m |
| Lmoulded |
12.5m |
| Beam |
3.7m |
| Installed Power |
2 x 400-600hp Waterjets |
| |
|
Comments: Diesel waterjet version of Landing Craft.
Designed to take military spec Hummer.
|
|
|
|
 |

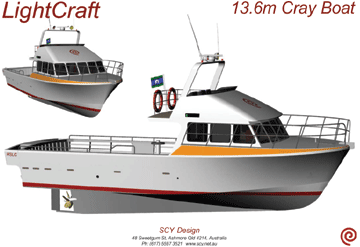

| Type |
Semi Planing Hull |
| LOA |
13.6m |
| Lmoulded |
13.0m |
| Beam |
3.7m |
| Installed Power |
1x 600 hp |
| |
|
Comments: Cray Boat
|
|
|
|
 |
| Type |
Semi Displacement Hull |
| LOA |
14.0m |
| Lmoulded |
13.2m |
| Beam |
4.0m |
| Installed Power |
2 x 200-350hp |
| |
|
Comments: Hydrographic Survey Vessel operating out
of Port Klang in Malaysia. Built 2005
|
|
|
|
 |

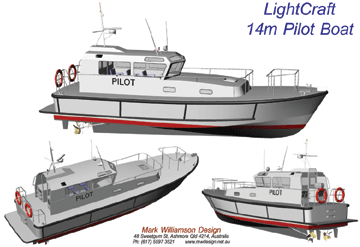

| Type |
Semi Displacement Hull |
| LOA |
14.0m |
| Lmoulded |
13.2m |
| Beam |
4.0m |
| Installed Power |
2 x 200-500hp |
| |
|
Comments: Pilot boat. Similar hull to Hydrographic
Survey Vessel.
|
| |
|
 |

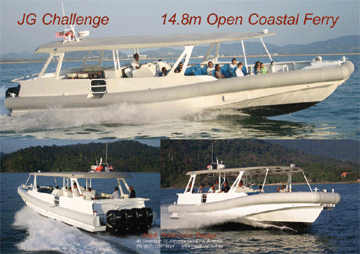

| Type |
Planing Hull, RIB |
| LOA |
15.6m |
| Lmoulded |
14.8m |
| Beam |
4.5m |
| Installed Power |
800-1200hp |
| Pax |
48 |
| |
| Comments: Open Coastal Ferry, Diesel Options |
| Built: 2008, Lankawi, Malyasia by JG Boats |
|
|
|
|
 |

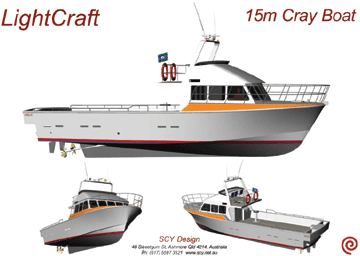

| Type |
Semi Planing Hull |
| LOA |
15.0m |
| Lmoulded |
14.4m |
| Beam |
4.8m |
| Installed Power |
2 x 305 hp |
| |
|
Comments: Cray Boat |
|
|
|
 |
| Type |
Semi Planing Hull |
| LOA |
15.5m |
| Lmoulded |
14.6m |
| Beam |
4.6m |
| Installed Power |
2 x 435 hp |
| |
Waterjet Option |
| |
|
Comments: General Harbour Workboat
|
|
|
|
 |

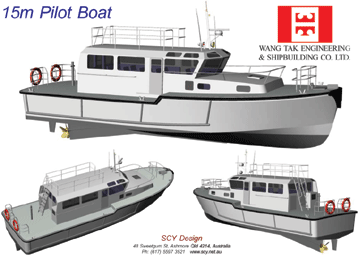

| Type |
Semi Planing Hull |
| LOA |
15.2m |
| Lmoulded |
14.9m |
| Beam |
4.5m |
| Installed Power |
1 x 485 hp, 36" Prop |
| |
Waterjet Option |
| |
|
Comments: Hong Kong Pilot Boat
|
|
|
|
 |

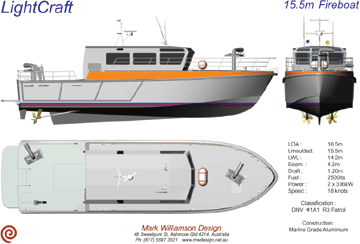

| Type |
Semi Planing Hull |
| LOA |
16.5m |
| Lmoulded |
15.5m |
| Beam |
4.2m |
| Installed Power |
2 x 455 hp |
| |
|
Comments: Fireboat
|
|
|
|
 |

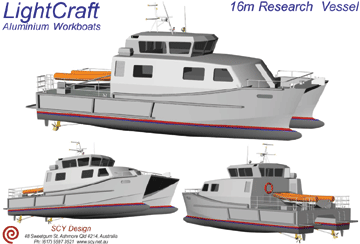

| Type |
Semi Swath Catamaran |
| LOA |
16.8m |
| Lmoulded |
15.9m |
| Beam |
5.8m |
| Installed Power |
2 x 355 hp |
| |
|
Comments: Research Vessel, Offshore Patrol Boat
|
|
|
|
|
|
|
 |

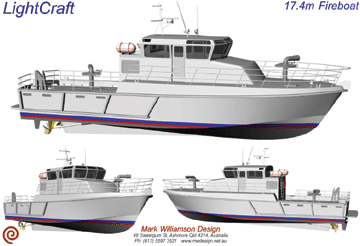

| Type |
Semi Planing Hull |
| LOA |
18.4m |
| Lmoulded |
17.4m |
| Beam |
4.6m |
| Installed Power |
2 x 590 hp |
| |
|
Comments: Fireboat
|
|
|
|
 |

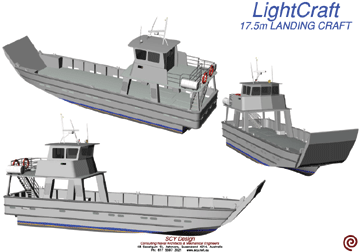

| Type |
Planing Hull, Landing Craft |
| LOA |
19.0m |
| Lmoulded |
17.5m |
| Beam |
4.7m |
| Installed Power |
2 x 500 hp |
| |
|
Comments:
|
|
|
 |

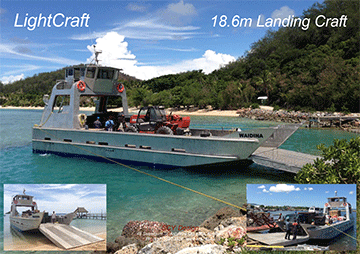

| Type |
Landing Craft |
| LOA |
20.8m |
| Lmoulded |
18.6m |
| Beam |
5.6m |
| Installed Power |
2 x 195-400 hp |
| |
|
Comments: Built by Marine Solution, Fiji |
|
|
|
 |

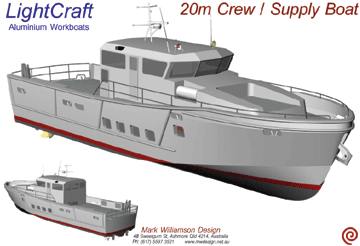

| Type |
Semi Planing Hull |
| LOA |
19.9m |
| Lmoulded |
18.5m |
| Beam |
5.6m |
| Installed Power |
2 x 900 hp |
| |
Props or Waterjets |
|
|
|
 |

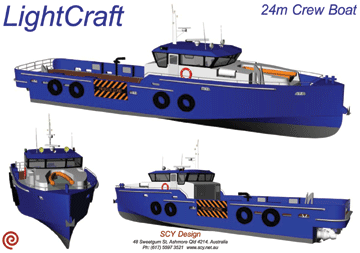

| Type |
Semi Planing Hull |
| LOA |
26.3m |
| Lmoulded |
23.9m |
| Beam |
6.0m |
| Installed Power |
2 x 720-1080kW |
| |
Props or Waterjets |
|
|
|
 |

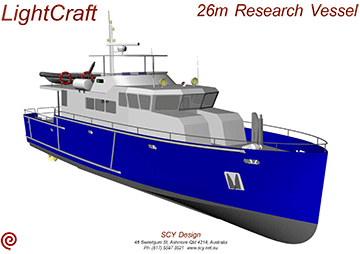

| Type |
Semi Planing Hull |
| LOA |
27.2m |
| Lmoulded |
26.0m |
| Beam |
5.9m |
| Installed Power |
2 x 449kW |
| |
Props |
|
|
|
|
 |

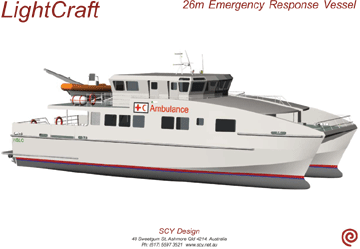

| Type |
Semi Swath Catamaran |
| LOA |
26.4m |
| Lmoulded |
25.2m |
| Beam |
9.0m |
| Installed Power |
2 x 900 hp |
| |
Props or Waterjets |
Comments: Lots
of different layouts with multiple application.
|
|
|
 |

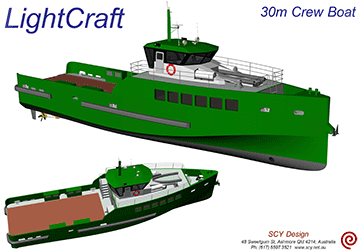

| Type |
Crew Boat |
| Hullform |
GM30 |
| LOA |
31.0m |
| Lmoulded |
30.0m |
| Beam |
7.0m |
| Installed Power |
3 x 662 kW |
| |
FPP |
| Pax |
64 |
| Crew |
2+4 |
| Clear Deck Area |
71m2 |
| |
|
| Animation |
|
|
|
|
|
 |
| Type |
Semi Swath Catamaran |
| LOA |
37.0m |
| Lmoulded |
34.8m |
| Beam |
10.0m |
| Installed Power |
2 x 2320 kW |
| |
Waterjets |
Comments: 100t
payload
|
|
|
 |
| Type |
Coastal Ferry |
| Hullform |
Gmotion |
| LOA |
35.8m |
| Lmoulded |
35m |
| Beam moulded |
7.5m |
| Installed Power |
2 x 882 kW |
| |
FPP |
| Pax |
289+48 |
| Crew |
4 |
| |
|
| Animation |
|
|
|
|
 |

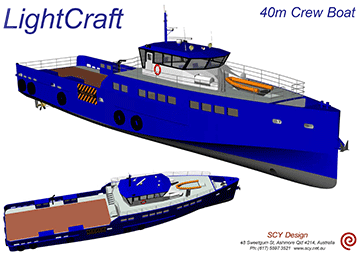

| Type |
Crew Boat |
| Hullform |
GM40 |
| LOA |
41.0m |
| Lmoulded |
40.0m |
| Beam |
8.0m |
| Installed Power |
3 x 1007 kW |
| |
FPP |
| Pax |
88 |
| Crew |
2+8 |
| Clear Deck Area |
100m2 |
| |
|
| Animation |
|
Comments: SE Asian Specification, FiFi1/2 |
|
|
 |

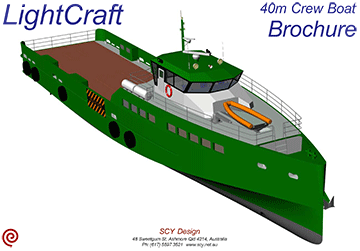

| Type |
Crew Boat |
| Hullform |
GM40 |
| LOA |
41.0m |
| Lmoulded |
40.0m |
| Beam |
8.0m |
| Installed Power |
3 x 970 kW |
| |
FPP |
| Pax |
76 |
| Crew |
2+8 |
| Clear Deck Area |
125m2 |
| Animation |
|
Comments: Indonesian Specification
|
|
|
 |

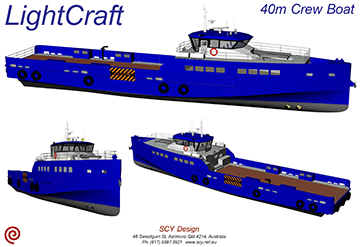

| Type |
Crew Boat |
| Hullform |
GM40 |
| LOA |
41.0m |
| Lmoulded |
40.0m |
| Beam |
8.0m |
| Installed Power |
3 x 1007 kW |
| |
Waterjet |
| Pax |
78 |
| Crew |
2+8 |
| Clear Deck Area |
125m2 |
| Animation |
|
Comments: America's Specification, DP2
|
|
|
 |
| Type |
Fast Support Intervention Vessel |
| Hullform |
GM40 |
| LOA |
41.0m |
| Lmoulded |
40.0m |
| Beam |
8.0m |
| Installed Power |
3 x 1007 kW |
| |
CPP |
| Pax |
50 |
| Pax Berths |
20 |
| Crew |
2+8 |
| Deck Area |
158m2 |
| Animation |
|
Comments: FSIV, DP2, FiFi1, Fast Rescue Boat, Balistic Protection WHS & Deckhouse |
|
|
 |
| Type |
Fast Support Intervention Vessel |
| Hullform |
GM40 |
| LOA |
41.0m |
| Lmoulded |
40m |
| Beam |
8.0m |
| Installed Power |
3 x 1007 kW |
| |
Waterjets |
| Pax |
88 |
| Pax Berths |
21 |
| Crew |
2+8 |
| Clear Deck Area |
100m2 |
| Animation |
|
| Comments: FSIV, DP2, FiFi1, Fast Rescue Boat, Balistic Protection WHS & Deckhouse |
|
|
|
 |

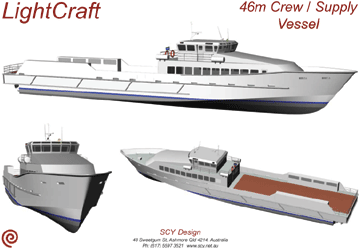

| Type |
Semi Planing Hull |
| LOA |
47.0m |
| Lmoulded |
46.7m |
| Beam |
8.2m |
| Installed Power |
4 x 738 kW |
| |
|
| Deck Load |
150 t |
| Cargo Fuel |
|
| Cargo Water |
|
| |
|
Comments:
|
|
|
 |

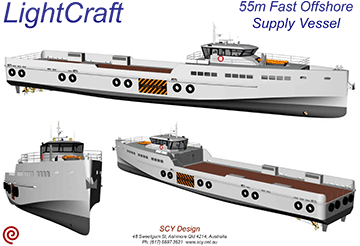

| Type |
Crew Boat |
| Hullform |
GM55 |
| LOA |
56.2m |
| Lmoulded |
55.0m |
| Beam |
10.5m |
| Installed Power |
4 x 1350 kW |
| |
Prop |
| Pax |
95 |
| Crew |
2+8 |
| Clear Deck Area |
257m2 |
| Cargo Fluids |
276m3 |
| Animation |
|
Comments: |
|
|
|
|
 |

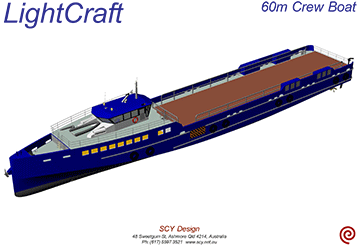

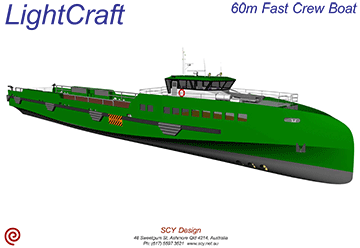

| Type |
Crew Boat |
| Hullform |
GM60 |
| LOA |
61.2m |
| Lmoulded |
60.0m |
| Beam |
10.0m |
| Installed Power |
4-6MW |
| |
Prop |
| Pax |
95 (1000mm seat pitch) |
| Crew |
2+8 |
| Clear Deck Area |
282m2 |
| Cargo Fluids |
297m3 |
| Animation |
|
Comments: |
|
|
|
|
 |
| Type |
Crew Boat |
| Hullform |
GM60 |
| LOA |
62.8m |
| Lmoulded |
60.0m |
| Beam |
10.0m |
| Installed Power |
4 x 2240 kW |
| |
Waterjet |
| Pax |
95 (seat pitch 1000) |
| Crew |
2+8 |
| Clear Deck Area |
301m2 |
| Cargo Fluids |
255m3 |
| Animation |
|
Comments: DP1, FiFi1 |
|
|
